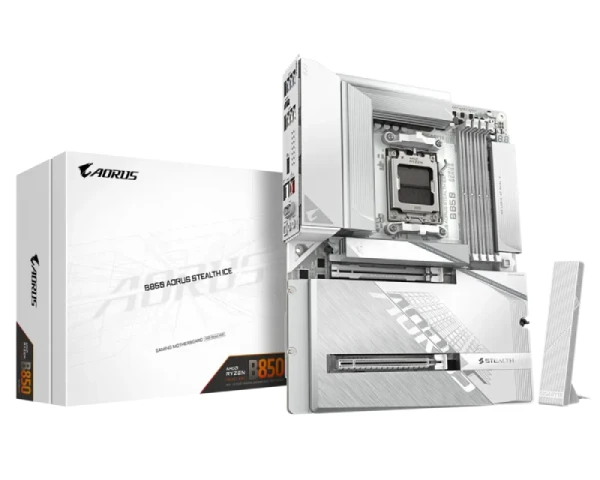

Maticna ploča AM5 Gigabyte B850 AORUS STEALTH ICE DDR5 HDMI/M.2

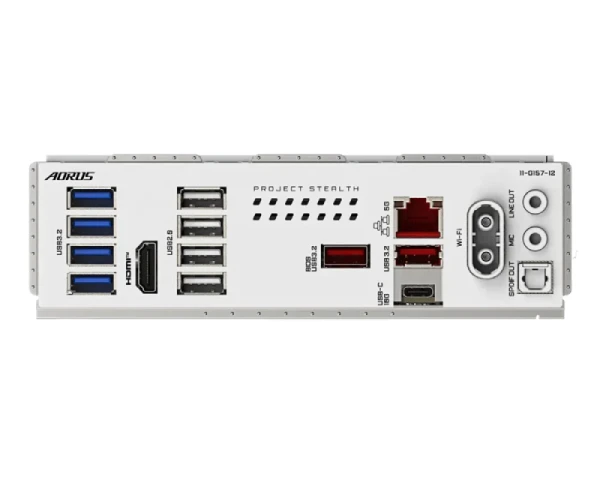

Procesorsko ležište (socket) AMD AM5 Čipset AMD B850 Grafika Upotreba grafike iz procesora Tip memorije DDR5 Memorijski slotovi 4 Podržane memorije Podržava DDR5 memorije do 8.200MT/s (O.C.) Maksimalna ukupna memorija 256GB Ostale osobine Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO) PCI Express x16 slot 1x PCI Express 4.0 (x4 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 modes) SATA priključci (ukupno) 2 SATA priključci SATA III 6Gbps Broj M.2 slotova 4 Podržani M.2 formati 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 4.0/5.0 x4/x2 mod), 2x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0/5.0 x4/x2 mod) RAID RAID 0, RAID 1, RAID 10, RAID 5 Žična mreža (LAN) 5GBase-T (Gigabit) Model Realtek Wi-Fi Da Wi-Fi standard IEEE 802.11ax, Realtek® Wi-Fi 7 RTL8922AE Bluetooth Da Bluetooth verzija 5.4 Broj kanala 2/4/5.1/7.1 Model Realtek ALC1220 Audio Codec Napomena High Definition, Podrška za S/PDIF izlaz, High-End Audio Capacitor Broj HDMI priključaka 1 HDMI priključci 1x HDMI Ukupno USB priključaka 11 Ukupno USB-C priključaka 1 USB-A priključci 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 4x USB 5Gbps (3.2 Gen 1) USB-C priključci 1x USB 10Gbps (3.2 Gen 2) RJ-45 (LAN) 1 Audio 2x 3.5mm Ostali priključci 1 x optical S/PDIF, 2x SMA antenna connectors (2T2R) Naponski priključci 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector USB-A 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port USB-C 1 x podrška za 1 USB 20Gbps port Audio 1x Front panel audio Ostali priključci 1 x Clear CMOS jumper, 1 x RGB LED strip header, 1 x CPU fan header, 2 x SATA 6Gb/s, 1 x front panel header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Power button, 1 x reset button, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 2 x system fan/water cooling pump headers, 2 x temperature sensor headers, 1 x noise detection header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 4 x system fan headers, 4 x M.2 Socket 3 connectors Podržane tehnologije Q-Flash Plus, Norton Internet Security (OEM verzija), Voltage detection, Detekcija Temperature, Fan speed detection, Fan fail warning, Fan speed control, iTE I/O Controller Chip, AI Overclocking, GIGABYTE Control Center, Smart Fan 6, Water cooling flow rate detection, Smart Backup, RGB Fusion, HWiNFO, D5 Bionic Corsa, Aorus Ai Snatch, HyperTune BIOS, X3D Turbo Mode, Zenith Memory Performance, VRM Thermal Armor Advanced, WIFI EZ-Plug, M.2 Thermal Guard, UC BIOS, EZ-Debug Zone, PCIe EZ-Latch, Ultra Durable, AIO Fan Control, M.2 EZ-Flex Design, DriverBIOS Format ATX Dimenzije 305mm x 244mm Prava potrošača: Zakonska saobraznost 2 godine + 1 godina dodatne komercijalne garancije uz garantnu izjavu proizvođača
